RB-100SP

The underwater RB-110SP is a professional drone for research work in a narrow and hard-to-reach place

Dimensions inside of 200×200 mm (WxH)

If you need to get into a narrow place, for example, inside a pipe, then you will not find a better model of ROV.
Two horizontal thrusters and two vertical ones.
Light.
Easy to operate.
Maintenance-free.

Underwater inspection with the help of DOV will allow you to obtain objective visual information about the condition of underwater objects in real-time with the ability to record video for subsequent detailed analysis.

Product

The underwater RB-100D is a professional drone for working at depths of up to 30-50 meters with a current speed of up to 0.5m/s

Maximum diving depth – 70 m

Dimensions:340 x 290 x 280 mm (LxWxH)
Weight: 5,6 kg
Thrusters: 3pcs x 1,2 kgs
Cruising speed: Up to 1 m/s
Tether cable 100 m
Equipped with front HD camera
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

Advantages:
– highest quality
– compact and lightweight
– able to take photos and videos with high resolution
– simplified control, even for an amateur

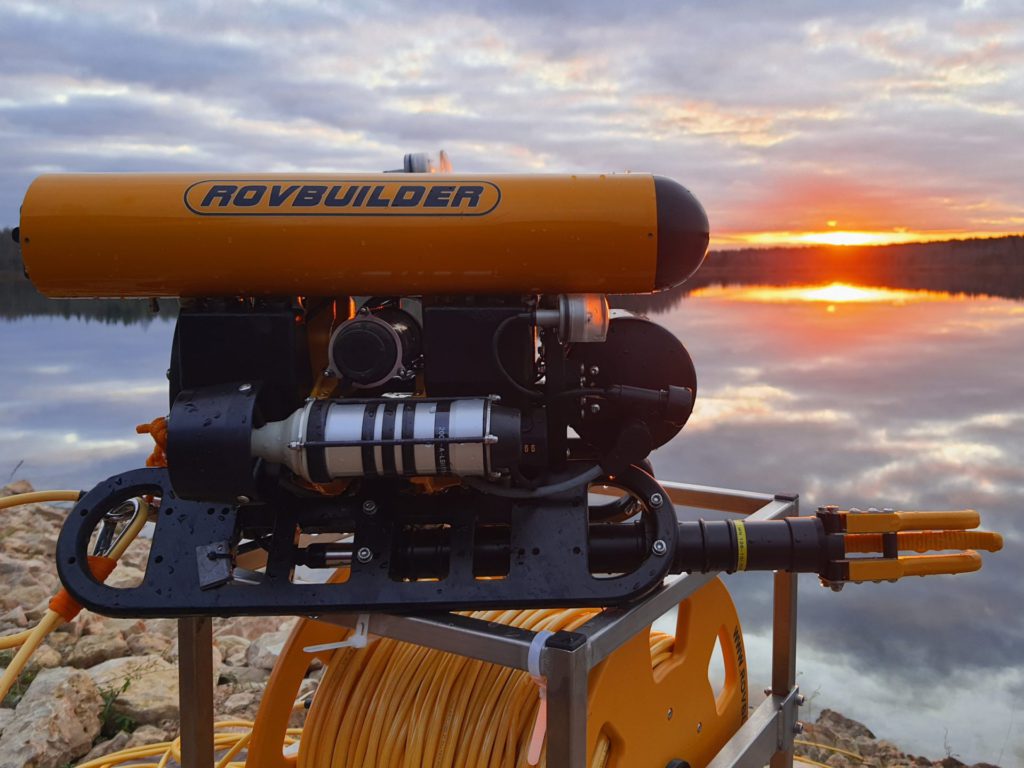

ROV RB-300D

ROV RB-300D – a professional underwater drone for normal operating on 70-100 meters depth and current speed up to 0.5m/s.

Maximum diving depth – 200 m

Dimensions: 500 x 310 x 300 mm (LxWxH)
Weight: 12 kg
Thrusters: 5pcs x 1,5 kgs
Cruising speed: Up to 1 m/s
Tether cable 220 m
Equipped with front HD camera
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

The main plus`s:
– video recording goes with telemetry
– it has digital HD video with color telemetry text and graphics
– there is no need to download video every time after the job — you can copy-past it anytime using a USB drive
– there is a full-function PC build-in the surface unit — it allows not only records video but also sign and view it later
– there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
– remote Control is comfortable in using
– a lot of additional sensors could be using (outside temperature, pitch-roll and etc)

Product

ROV RB-300D Frame Edition – equipped with 2 Full HD cameras with tilt +/- 90 degrees (front and rear)

a professional underwater drone for normal operating on 70-100 meters depth and current speed up to 0.5m/s.

Maximum diving depth – 200 m

Dimensions: 550 x 330 x 300 mm (LxWxH)
Weight: 13 kg
Thrusters: 5pcs x 1,5 kgs
Cruising speed: Up to 1 m/s
Tether cable 220 m
Equipped with front and rear FULL HD cameras with tilt
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

The main plus:
– video recording goes with telemetry
– it has digital HD video with color telemetry text and graphics
– there is no need to download a video every time after the job — you can copy-past it anytime using a USB drive
– there is a full-function PC build-in the surface unit — it allows not only records video but also signs and views it later
– there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
– remote Control is comfortable in using
– a lot of additional sensors could be used (outside temperature, pitch-roll and etc)

Product

ROV RB-300D Power Edition – equipped with 2 forced main thrusters by 3,5 kg each

a professional underwater drone for normal operating on 70-100 meters depth and current speed up to 1,5 m/s.

A specially designed drone for work in places where there are currents, including in the coastal zone of the ocean.

Maximum diving depth – 200 m

Dimensions: 500 x 390 x 300 mm (LxWxH)

Weight: 14 kg
Thrusters:
Main (forward-back) 2pcsx3,5 kgs
Vertical 2pcs x 1,5 kgs
Lateral 1pcx1,5 kgs

Cruising speed: Up to 1,5 m/s
Tether cable 220 m
Equipped with front HD camera
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

The main plus:
– video recording goes with telemetry
– it has digital HD video with color telemetry text and graphics
– there is no need to download a video every time after the job — you can copy-past it anytime using a USB drive
– there is a full-function PC build-in the surface unit — it allows not only records video but also to sign and to view it later
– there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
– remote Control is comfortable in using
– a lot of additional sensors could be used (outside temperature, pitch-roll and etc)

RB-600D Underwater ROV

ROV RB-600D – a professional underwater drone for use on 300 meters depth and speed up to 2 m/s

Dimensions: 648 x 375 x 430 mm (LxWxH)
Weight: 32 kg
Thrusters: 7pcs x 5 kgs
Cruising speed: Up to 2 m/s
Vertical speed: Up to 1 m/s
Lag speed: Up to 0,5 m/s
Tether cable 400 m
Equipped with front and rear FULL HD cameras
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

The main plus`s:
– video recording goes with telemetry
– there is no need to download video every time after the job — you can copy-past it anytime using a USB drive
– there is a full-function PC build-in the surface unit — it allows not only records video but also sign and view it later
– there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
– remote Control is comfortable in using
– a lot of additional sensors could be using (outside temperature, pitch-roll and etc)

Underwater RB-660D

ROV RB-660D – a professional underwater drone for use on 300 meters depth and speed up to 1,5 m/s

This drone will allow you to install more additional equipment on it.
Horizontal running thruster are vector mounted.

Dimensions: 770 x 490 x 430 mm (LxWxH)
Weight: 40 kg
Thrusters: 7pcs x 5 kgs
Cruising speed: Up to 1,5 m/s
Vertical speed: Up to 1 m/s
Lag speed: Up to 0,5 m/s
Tether cable 400 m
Equipped with front and rear FULL HD cameras
Sensors Depth sensors, Magnetic compass, Water temperature, Roll / Trim, Three-axis accelerometer

The main plus`s:
– video recording goes with telemetry
– there is no need to download video every time after the job — you can copy-past it anytime using a USB drive
– there is a full-function PC build-in the surface unit — it allows not only records video but also sign and view it later
– there is a possibility to overlay on the video absolute coordinates of ROV using our USBL
– remote Control is comfortable in using
– a lot of additional sensors could be using (outside temperature, pitch-roll and etc)

Product

ROV RB Mirage – a deep-sea robot with a diving depth of up to 1000 meters

The development of recent years is made according to the vector scheme of marching thrusters.
Thanks to this, the drone is able to dive steadily at a given depth at a high current speed.
These thrusters are made on the principles of brushless motors. They have a thrust in both directions of 15 kgs.

Dimensions (LxWxH), mm 1148x830x830
Weight, kg 130
Thrusters, kgs 6 x 15
Speed, m/s 2
Working depth, m 1000
Cable, m 1100
